Baxi - Heatrae Electromax Electric Boiler

Electric Boilers

Electromax

The Electromax is all-in one electric boiler and 180 litre cylinder that provides fast, reliable and energy efficient heat and hot water.



Pre-plumbed with a circulating pump, it’s easy to install in a standard airing cupboard and comes with smart, user-friendly comfort controls.

Contact your ASM

Features and Benefits

Multiple outputs

Available in outputs of 6 and 9kW

Stainless steel

Floor-mounted, duplex stainless steel cylinder construction

Easy installation

Integrated boiler and cylinder system that's easy to install in locations where space is limited

Warranty

10-year parts and labour warranty†

Controls covered

2-year controls warranty†
Show More
Show Less

Product Literature

Quick Start Guide

Quick Start Guide

Installation & Service Manuals

Installation & Service Manuals

Specification Guides

Specification Guides

Product Documentation

No documentation available.

Energy Labels

Energy Labels

Product Documentation

No documentation available.

Solutions Brochure

Solutions Brochure

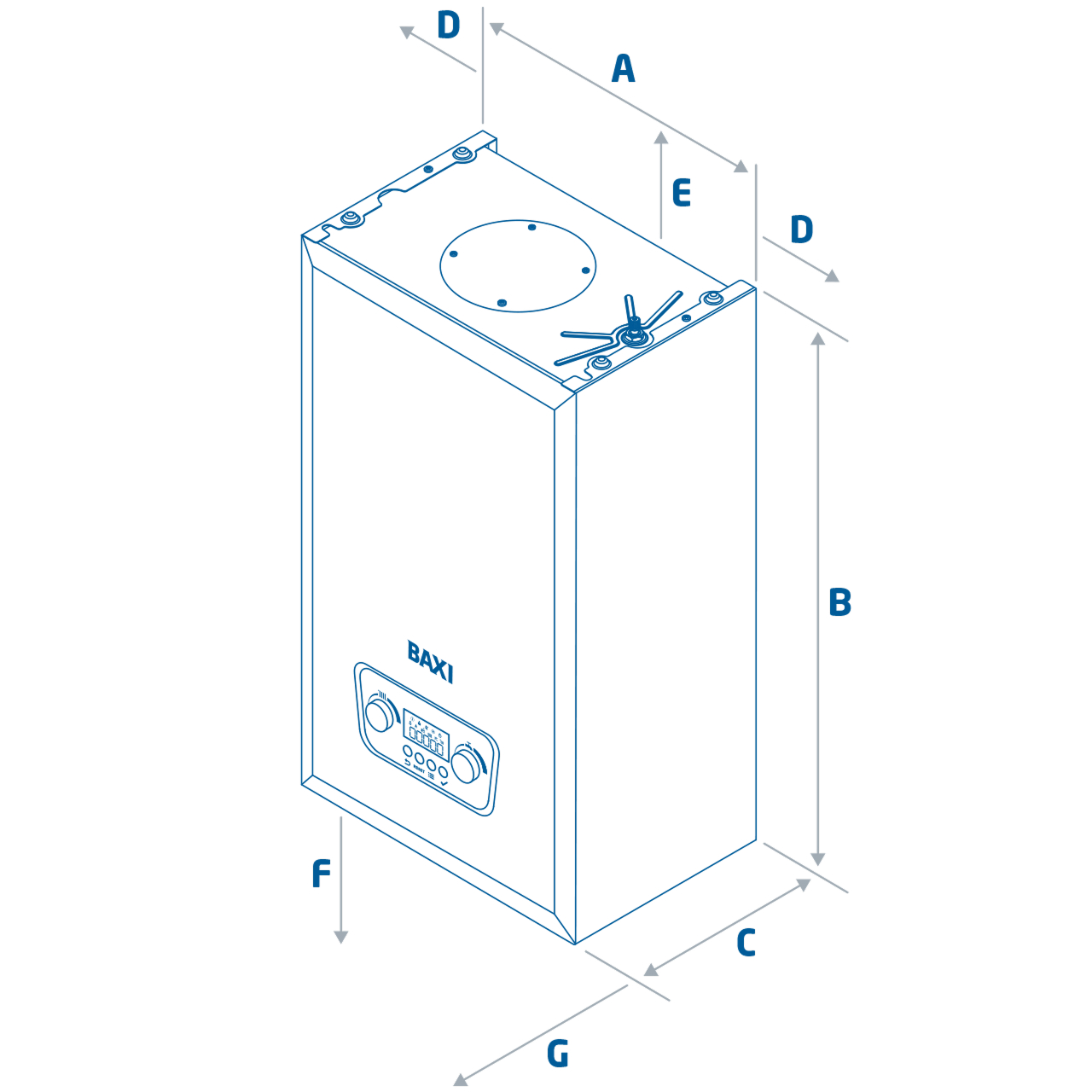

Baxi Electromax Electric Boiler Dimensions

Dimensions

A: Boiler Width = 395mm

B: Boiler Height = 718mm

C: Boiler Depth = 284mm

D: Side Clearance = 5mm

E: Upper Clearance = 200mm

F: Lower Clearance = 200mm

G: Front Clearance = 6mm in operation (450mm for servicing)

Technical Specification

Model6kW Radiator9kW Radiator9kW underfloor6kW underfloor
Product code95:022:23495:022:23695:022:22695:022:227
Electrical input max3 @ 240V2.8 @ 230V3 @ 240V2.8 @ 230V3 @ 240V2.8 @ 230V3 @ 240V2.8@ 230V
Boost immersion heater input (kW)3 @ 240V2.8 @ 230V3 @ 240V2.8 @ 230V3@ 240V2.8 @ 230V3 @ 240V2.8@ 230V
Rated pressure (bar)6666
Pressure reducing valve (bar)3.53.53.53.5
Capacity (litres)180180180180
DHW expansion vessel (litres/bar)18/3.518/3.518/3.518/3.5
Temperature / pressure relief valve90/1090/1090/1090/10
Combined thermostat10 7010 7010 7010 70
Resettable thermal cut-out85858585
Minimum insulation thickness (mm)40404040
Heat up time off peak at 45 (mins)180180180180
Heat up time off peak at 50 (mins)200200200200
First hour performance 3kW boost element at 45 (litres)57575757
