Amptec Boiler

Baxi Amptec Electric Boilers - Electric Central Heating Boiler

Electric Boilers

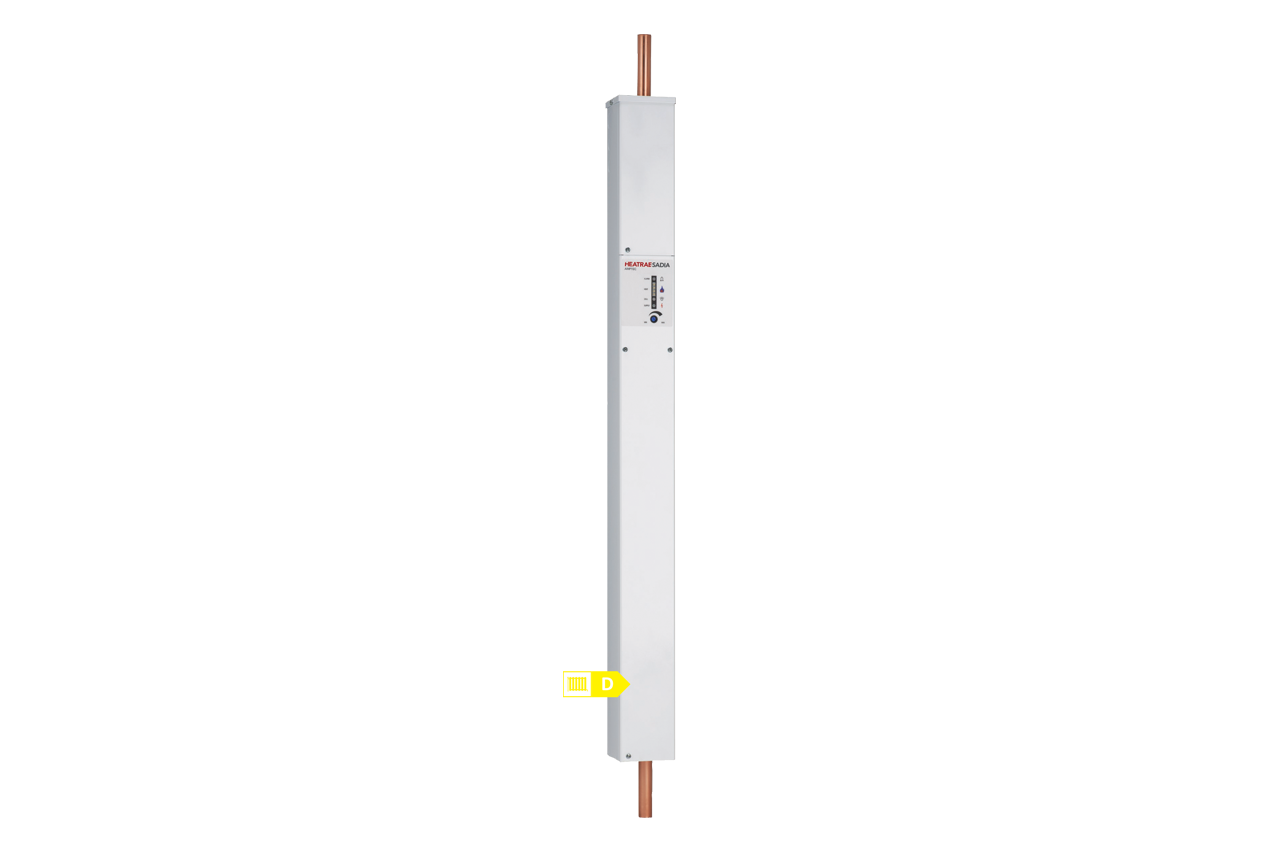

Amptec

Amptec is a compact and discreet electric boiler, the perfect low-maintenance solution to zero-carbon heating for new build properties.



The Amptec is also suitable for flats, garages and older properties that may have flue restrictions.

Features and Benefits

Multiple outputs

Available in outputs 4, 6, 9, 11 and 12kW

Versatile

Suitable for pressurised or open vented systems

Compact size

Slimline design perfect for homes with limited space

Highly efficient

Flue-free and 99.8% Efficient

Longer lifespan

Built using solid state technology for a longer life
Show More
Show Less

Product Literature

Installation & Service Manuals

Specification Guides

Specification Guides

Solutions Brochure

Solutions Brochure

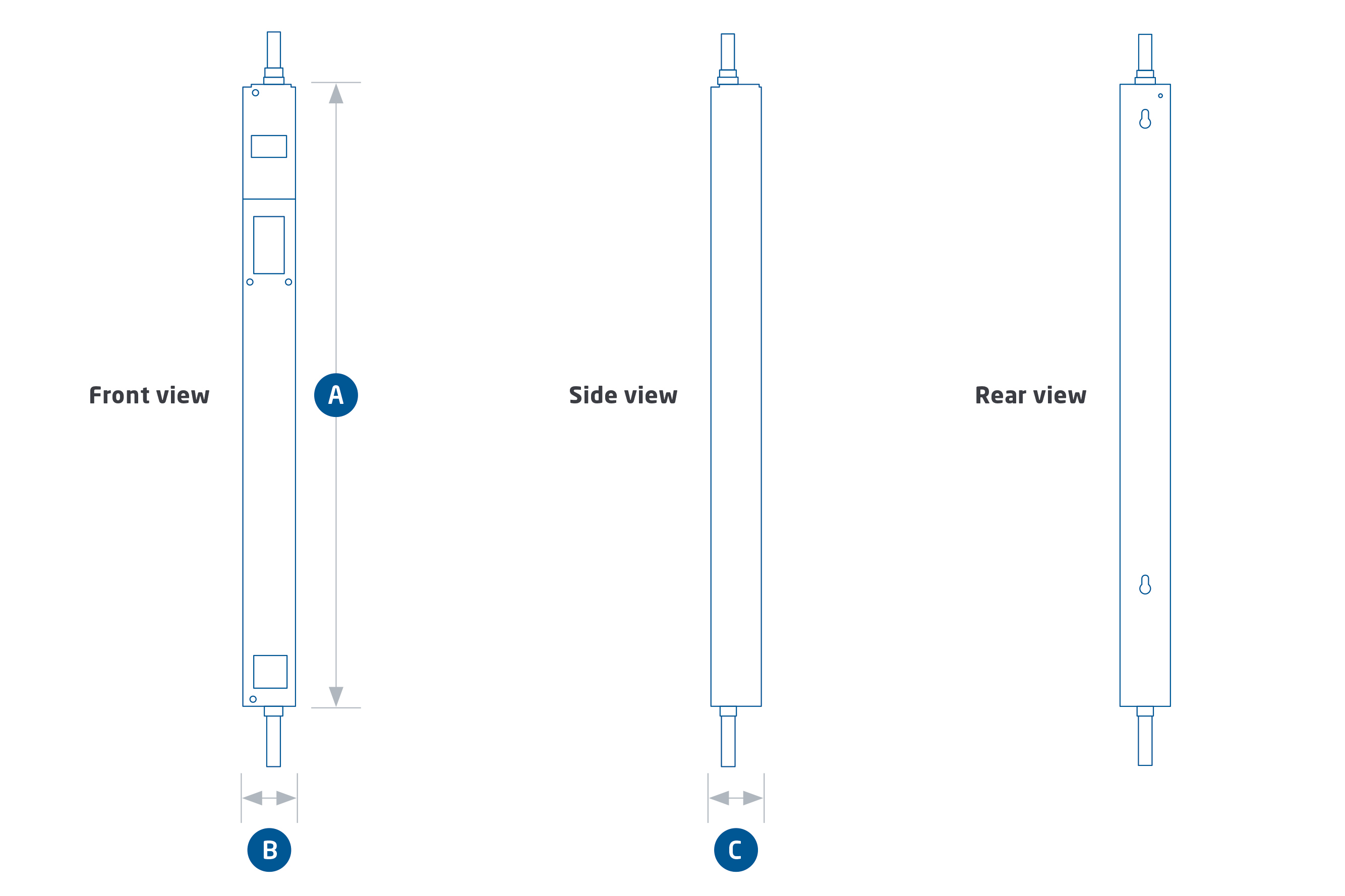

Baxi Amptec Electric Boiler Dimensions

Dimensions

A: Boiler Height = 1050mm

B: Boiler Width = 90mm

C: Boiler Depth = 90mm

Technical Specification

Model4kW Radiator6kW Radiator9kW Radiator11kW Radiator12kW Radiator
Product code95:022:00195:022:00295:022:00395:022:00495:022:005
Electrical input max4kW @ 240V3.7kW @ 230V6kW @ 240V5.5kW @230V9kW @ 240V8.3kW @ 230V11kW @ 240V10.1kW @ 230V12kW @ 240V11kW @ 230V
Electrical supply voltage (V)220-240220-240220-240220-240220-240
Electrical supply frequency (Hz)5050505050
220V/Btu3.5kW / 11,9005kW/ 17,0007.5kW / 25,6009kW/ 30,70010kW/ 34,000
240V/ Btu4kW/ 13,6006kW/20,400B9kW/ 30,70011kW/ 37,50012kW/40,900
Over tempature trips95 and 10095 and 10095 and 10095 and 10095 and 100
Water content (litres)1.31.31.31.31.3
Maximum operating pressure (bar)33333
Output temperature control range65 to 8065 to 8065 to 8065 to 8065 to 80
Minimum flow rate (I/min)66121212

* Please note, 50mm minimum clearance each side of the boiler is required.
