Heat Pumps

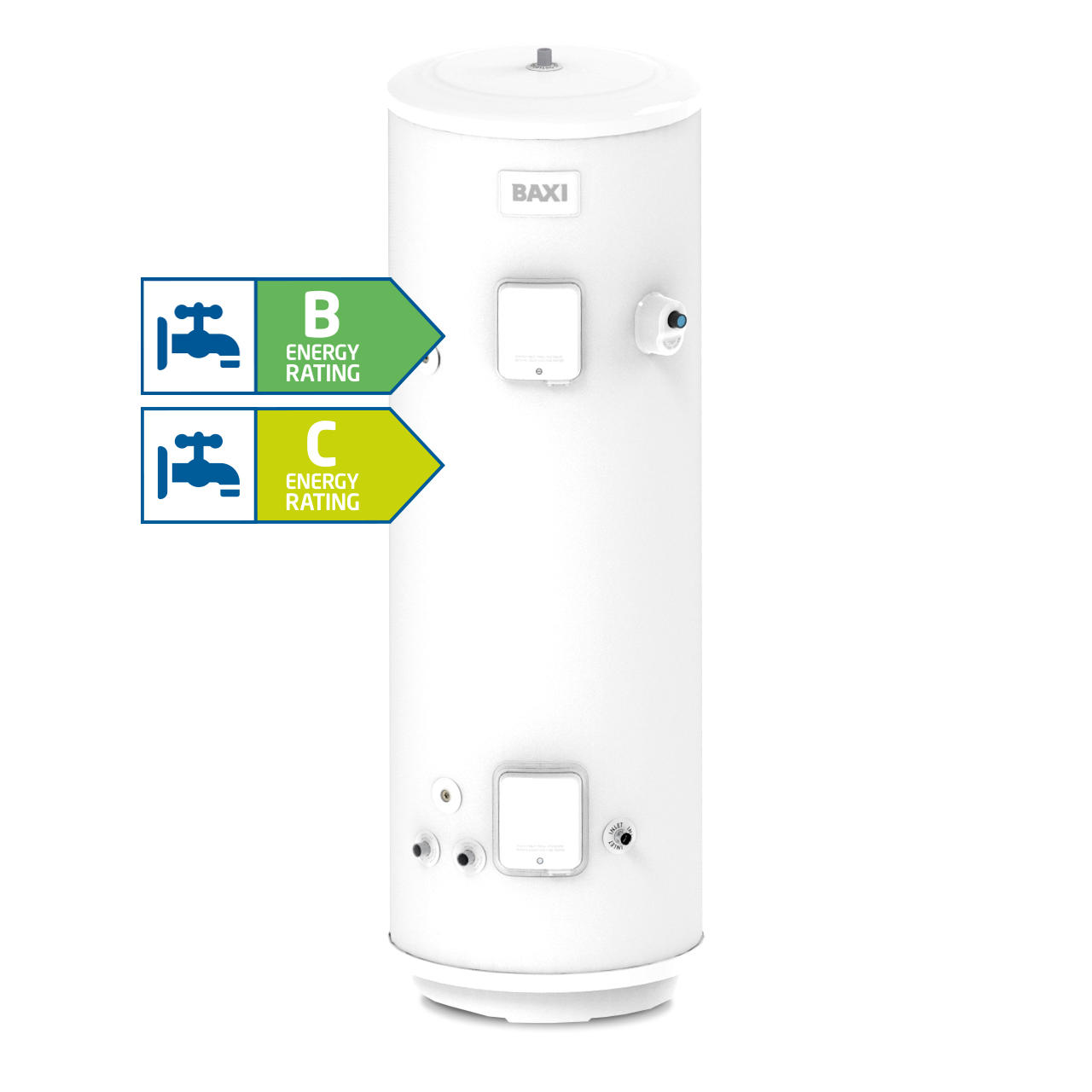

Baxi Assure ASHP Cylinder

Designed specifically for Baxi Assure Air Source Heat Pumps, these cylinders deliver exceptional levels of performance.

Features and Benefits

Available in volumes of 210, 250 or 300 litres

Corrosion-resistant stainless steel build – made by the experts at Megaflo and Heatrae Sadia

In-built backup immersion heaters to support a variety of heat pumps

High performance 'coil-in-coil' heat exchanger for exceptionally fast recovery times

Built-in interdependent boost heater for rapid hot water production

2-year warranty as standard, with 10-years on the inner stainless steel tank

Show Less

Product Model	210ltr	250ltr	300ltr
Product Code	7837416	7837491	7837562
Product Information
Nominal capacity (litres)	210	250	300
Insulation thickness (mm)	60	60	60
Immersion heater rating (1 x 3kW)	1 x 3	1 x 3	1 x 3
Boost immersion heater (1 x 3kW)	1 x 3	x 3	1 x 3
Standing heat loss (kWh/year)	547.5	649.7	748.3
Standing heat loss	1.5kW/24h	1.78kW/24h	2.05kW/24h
Max flow @ 3.5 bar (litres per minute)	76	76	76
Max flow @ 1 bar (litres per minute)	45	45	45
Storage volume in litres @ 3 bar	209	246	89
The water heating energy efficiency class of the model	B	C	C
Volumetrics
Height (mm)	1524	1837	2088
Width (mm)	579	579	579
Depth (mm)	652	652	652
Weight (kg)	60	69	74

Our Baxi Assure Sales Team is on hand to help you with all your Residential Specification hot water and heating requirements.

Our Baxi Design team provides a complete design service which includes SAP assessments for projects that incorporate Baxi Assure products.

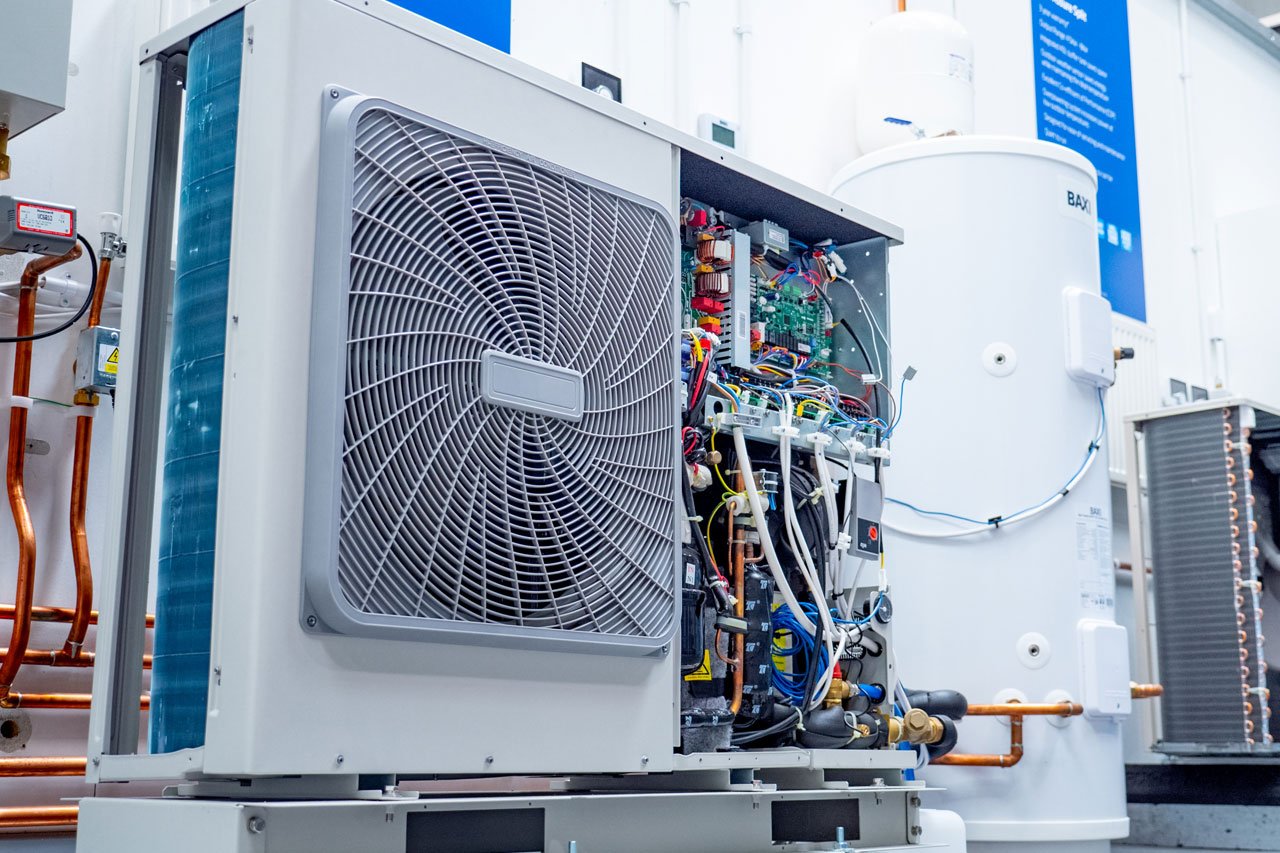

Our range of courses are designed to help you improve your skills so that you can work confidently and efficiently with air source heat pumps.
