Baxi HP60 High Monobloc Air Source Heat Pump

Contact your ASM
  2. Baxi HP60 High Monobloc Air Source Heat Pump
Baxi HP60 High Temperature Monobloc Air Source Heat Pump - ASHP

Heat Pumps

Baxi HP60 High Temperature Monobloc Air Source Heat Pump

The Baxi HP60 ASHP delivers reliable performance and quiet operation using a low GWP 3 refrigerant, helping you meet today’s expectations and tomorrows regulations.



Available in a wide range of outputs the Baxi HP60 ASHP is a self-contained outdoor air source heat pump that delivers outstanding energy performance at both high and medium temperature. For a complete system and maximum efficiency, pair it with our Baxi ASHP Pre-plumbed Cylinder or Baxi ASHP Cylinder and smart controls.



Extremely quiet with excellent SCOP ratings, it is the perfect solution for retrofit applications.

Contact your ASM
Baxi HP40 and HP60 Air Source Heat Pump £500 cashback promotion - ASHP Installer offer

Baxi HP40 and HP60 Heat Pump £500 cashback promotion

You can earn £500 per installation for qualifying Baxi HP40 and Baxi HP60 Air Source Heat Pumps when they are installed, commissioned, and registered on Baxi Works with a valid MCS Installation Certificate by 30th April 2026.*

Find out more

Features and Benefits

Multiple outputs

Available in outputs 4kW – 13kW all single phase with optional triple phase for large outputs

High Temperature

Up to 75°C flow temperature at A-10°C

Quiet operation

Sound power from 48 dB(A), which is the equivalent of a refrigerator hum

High efficiency

Seasonal Coefficient of Performance (SCOP)                  of up to 5.34

Built for lower impact

Low carbon emissions of GWP 3

Compatible

Compatible with Baxi ASHP Pre-plumbed Cylinder and Baxi ASHP Cylinder

Warranty

Up to 7 years’ enhanced warranty*
Show More
Show Less

*Terms and conditions apply

Baxi Air Source Heat Pump heating Solutions - ASHP heat pump

ASHP solutions built around you, backed by us

Our comprehensive range of air source heat pump solutions fits the needs of every project – and with expert support always on hand, you can trust us to deliver. When it comes to ASHPs, we’ve got the lot

Enquire now

Product Literature

Installation & Service Manuals

Installation & Service Manuals

Product Documentation

No documentation available.

User Guides

User Guides

Product Documentation

No documentation available.

Energy Labels

Energy Labels

Product Documentation

No documentation available.

Product Fiche

Product Fiche

Product Documentation

No documentation available.

Warranty Guide

Warranty Guide

Product Documentation

No documentation available.

Baxi HP60 High Temperature Monobloc Air Source Heat Pump - 4-6kW models

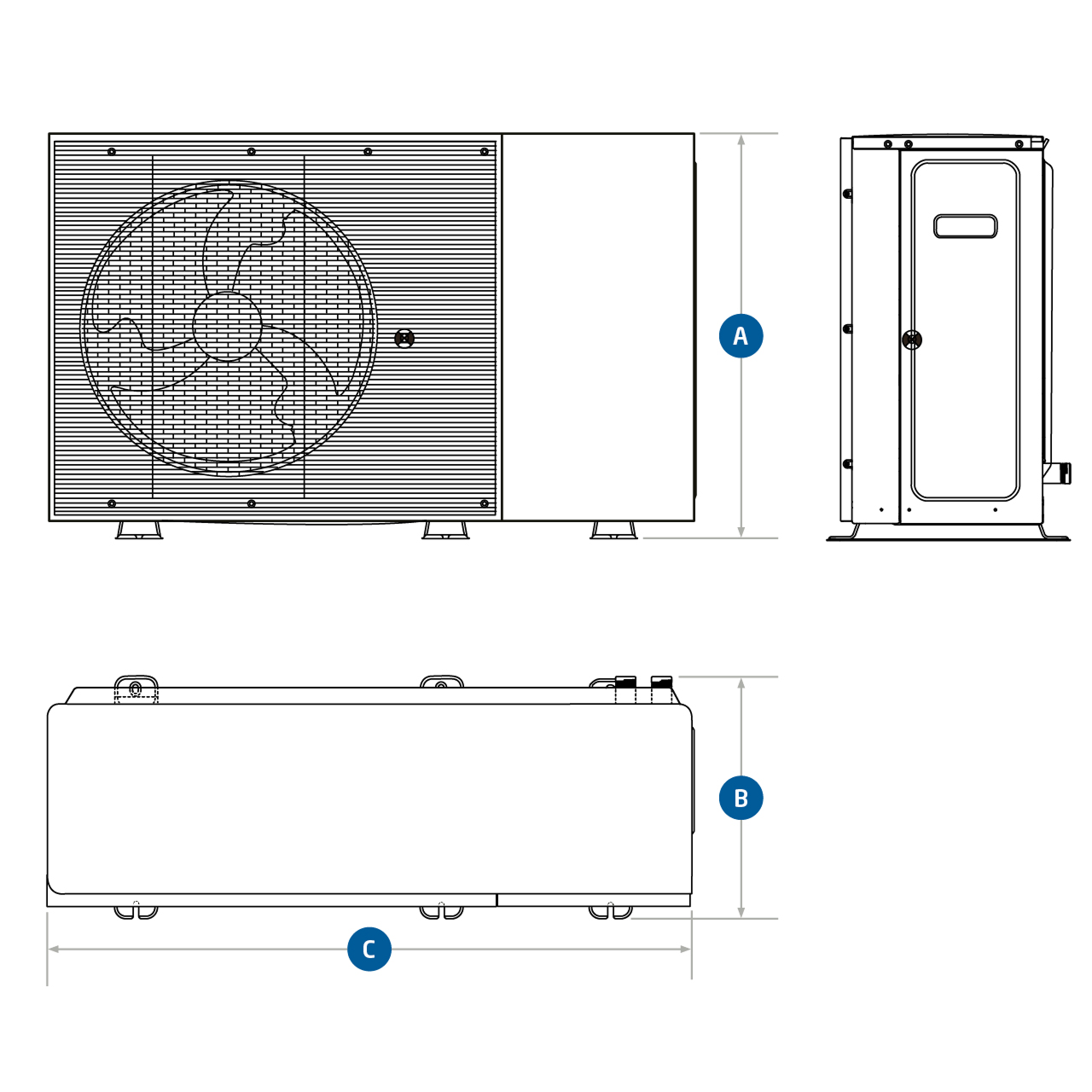

Dimensions

4-6kW models

A: Heat Pump Width = 1301mm

B: Heat Pump Height = 725mm

C: Heat Pump Depth = 426mm

D: Unit Volume = 0.36 m³

Baxi HP60 High Temperature Monobloc Air Source Heat Pump - 8-11-13kW models

Dimensions

8-11-13kW models

A: Heat Pump Width = 872mm

B: Heat Pump Height = 523mm

C: Heat Pump Depth = 1390mm

D: Unit Volume = 0.59 m³

Technical Specification

Product Model4 kW6 kW8 kW11kW11 kWφ13 kW13 kWφ
Product Code7899701789970278997037899704789970578997067899707
Product Information
Min/Max Operating Range (℃)-25/+35-25/+35-25/+35-25/+35-25/+35-25/+35-25/+35
SCOP 35°C5.345.225.204.774.774.704.70
35°C Maximum Output (1)
A-5°C W+35°C 5.91 kW6.63 kW9.72 kW11.82 kW11.82 kW14.83 kW14.83 kW
A0°C W+35°C6.28 kW7.22 kW10.33 kW13.14 kW13.14 kW16.13 kW16.13 kW
A+7°C W+35°C6.86 kW7.70 kW11.05 kW14.72 kW14.72 kW17.57 kW17.57 kW
35°C Nominal Output (2)
A-5°C W+35°C 4.12 kW5.98 kW8.10 kW10.37 kW10.37 kW11.94 kW14.83 kW
A0°C W+35°C4.29 kW5.91 kW8.15 kW10.97 kW10.97 kW12.54 kW16.13 kW
A+7°C W+35°C4.40 kW6.26 kW8.50 kW11.50 kW11.50 kW13.50 kW17.57 kW
SCOP 45°C4.404.354.344.094.094.064.06
45°C Maximum Output (1)
A-5°C W+45°C 5.65 kW6.33 kW9.49 kW11.32 kW11.32 kW14.22 kW14.22 kW
A0°C W+45°C5.99 kW6.88 kW10.02 kW12.58 kW12.58 kW15.49 kW15.49 kW
A+7°C W+45°C6.55 kW7.35 kW10.47 kW14.06 kW14.06 kW16.85 kW16.85 kW
45°C Nominal Output (2)
A-5°C W+45°C 3.97 kW5.71 kW8.0 kW10.40 kW10.40 kW12.89 kW12.89 kW
A0°C W+45°C4.35 kW6.03 kW8.07 kW11.00 kW11.00 kW12.91 kW 12.91 kW
A+7°C W+45°C4.40 kW6.30 kW8.23 kW11.50 kW11.50 kW13.50 kW13.50 kW
SCOP 55°C3.993.903.893.753.753.733.73
55°C Maximum Output (1)
A-5°C W+55°C 5.15 kW5.79 kW8.40 kW11.02 kW11.02 kW12.95 kW12.95 kW
A0°C W+55°C5.68 kW6.57 kW9.16 kW12.14 kW12.14 kW14.64 kW14.64 kW
A+7°C W+55°C6.20 kW6.97 kW10.17 kW13.61 kW13.61 kW16.40 kW16.40 kW
55°C Nominal Output (2)
A-5°C W+55°C 4.28 kW5.44 kW7.29 kW10.30 kW10.30 kW11.50 kW11.50 kW
A0°C W+55°C4.40 kW5.50 kW7.52 kW10.80 kW10.80 kW12.78 kW12.78 kW
A+7°C W+55°C4.40 kW6.10 kW8.00 kW11.50 kW11.50 kW13.50 kW13.50 kW
Sound Pressure Level @1m40.0 dB(A)40.0 dB(A)41 dB(A)44.0 d(B)A44.0 d(B)A44.0 d(B)A44.0 dB(A)
Sound Power Level (ERP)48.0 dB(A)48.0 dB(A)49 d(B)A52.0 d(B)A52.0 d(B)A52.0 d(B)A 52.0 dB(A)
ERP @ 35℃A+++A+++A+++A+++A+++A+++A+++
ERP @ 55℃A+++A+++A+++A++A++A++A++
Power Supply (V/Ph/Hz)220V-240V/1Ph/50Hz220V-240V/1Ph/50Hz220V-240V/1Ph/50Hz220V-240V/1Ph/50Hz380V-415V/3Ph/50Hz220V-240V/1Ph/50Hz380V-415V/3Ph/50Hz
MCA (A)12 A13.50 A17.5 A25 A8.5 A28 A9.5 A
TOCA (A)15 A 15 A19 A31 A11 A31 A11 A
MFA (A)16 A16 A20 A32 A16 A32 A16 A
Flow/Return ConnectionsG 1G 1G 1 1/4G 1 1/4G 1 1/4G 1 1/4G 1 1/4
Internal Expansion Vessel8 L8 L8 L8 L8 L8 L8 L
Pre-Pressure1.5 Bar1.5 Bar1.5 Bar1.5 Bar1.5 Bar1.5 Bar1.5 Bar
Maximum Water Pressure3 Bar3 Bar3 Bar3 Bar3 Bar3 Bar3 Bar
Minimum System Volume at 55°C26 L26 L42 L49 L49 L51 L51 L
RefrigerantR290R290R290R290R290R290R290
Refrigerant Volume0.7 kg0.7 kg1.1 kg1.25 kg1.251.25 kg1.25 kg
Compressor TypeTwin rotary / GMCCTwin rotary / GMCCTwin rotary / GMCCTwin rotary / GMCCTwin rotary / GMCCTwin rotary / GMCCTwin rotary / GMCC
Volumetrics
Weight Net94 kg94 kg122 kg140 kg142 kg140 kg142 kg
Weight with Packaging114 kg114 kg144 kg162 kg164 kg162 kg164 kg

(1) Output values tested at maximum compressor frequency

(2) Nominal values under test conditions EN14825:2013

Selections and sizing offered by Baxi utilise nominal values unless otherwise stated

Find out more about the Baxi HP60 and Baxi Assure HP55 accessories

Our range of accessories are designed to work with Baxi Air Source Heat Pumps heat pumps to help enhance the performance, efficiency and functionality of heating and hot water systems.Â
