Baxi HP40 Monobloc Air Source Heat Pump

Find an Installer
  2. Baxi HP40 Monobloc Air Source Heat Pump
Baxi HP40 Monobloc Air Source Heat Pump ASHP

Heat Pumps

Baxi HP40 Monobloc Air Source Heat Pump

If you are looking to upgrade to a low carbon solution in your home, the Baxi Air Source Heat Pump is the perfect choice for reliable, energy-efficient heating and hot water.


There’s an output suitable for your home, whatever the size of your property, and it comes with a magnetic filter to protect your heating system.

Find an Installer

Features and Benefits

Designed together

Specifically designed for use with the Baxi ASHP Cylinder for excellent hot water performance

    Reliable

    Will provide a steady, reliable source of heat

      Filter included

      Magnetic filter included to protect your heating system and provide extra reliability

        Warranty

        5-year warranty† for peace of mind

          Configurable

          Can be configured to suit the individual needs of your property

            Annual servicing

            Providing annual service care for your home heating system
              Show More
              Show Less

              Product Literature

              User Guides

              User Guides

              Product Documentation

              No documentation available.

              Installation & Service Manuals

              Installation & Service Manuals

              Product Documentation

              No documentation available.

              Energy Labels

              Energy Labels

              Product Documentation

              No documentation available.

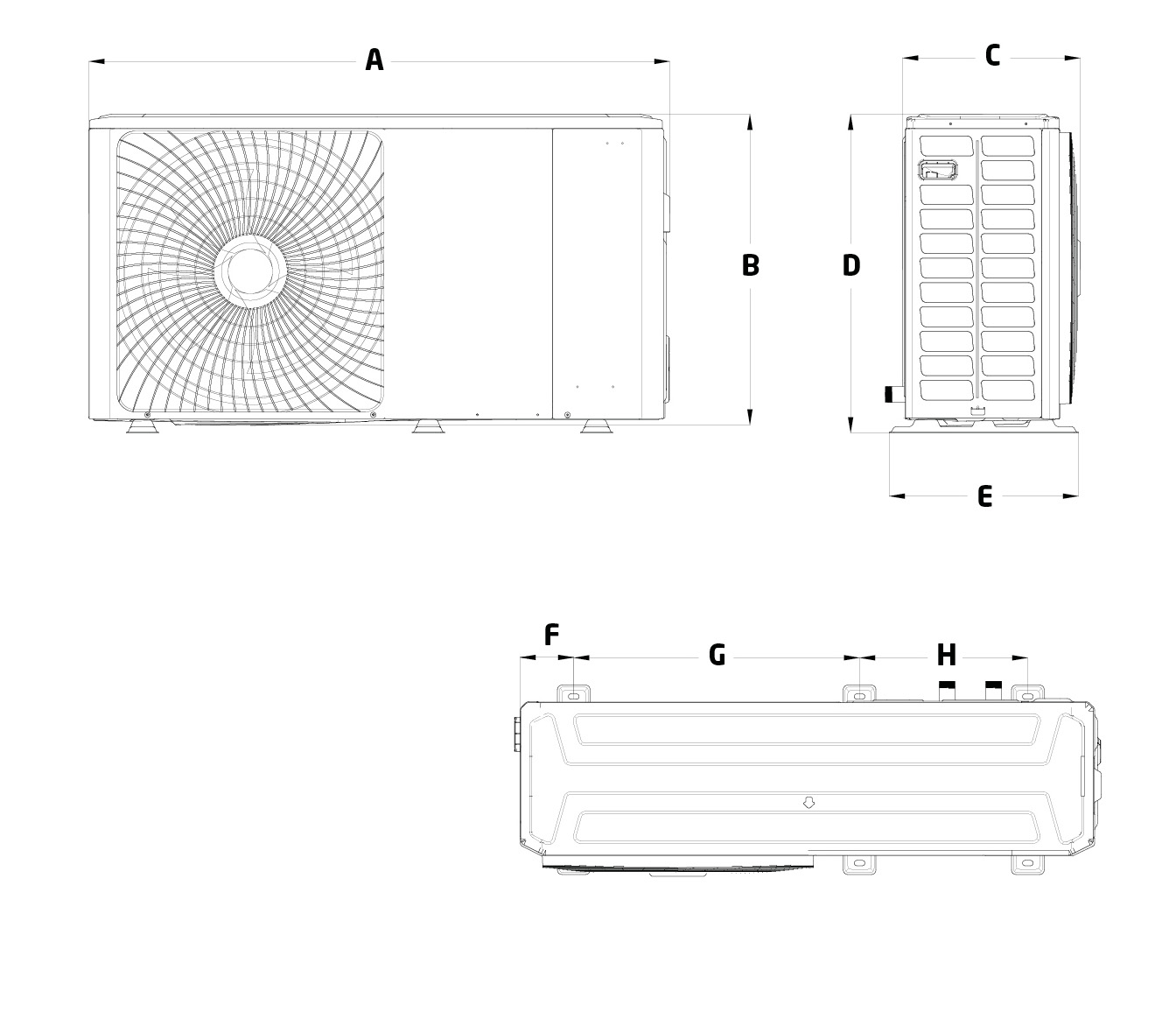

              Baxi HP40 Monobloc Air Source Heat Pump - 4-5kW models - Dimensions

              Dimensions

              4-5kW models

              A: Heat Pump Width = 1309mm

              B: Heat Pump Height = 700mm

              C: Heat Pump Depth = 400mm

              D: Heat Pump Height (total) = 717mm

              E: Heat Pump Depth (total) = 426mm

              F: 121mm

              G: 644mm

              H: 379mm

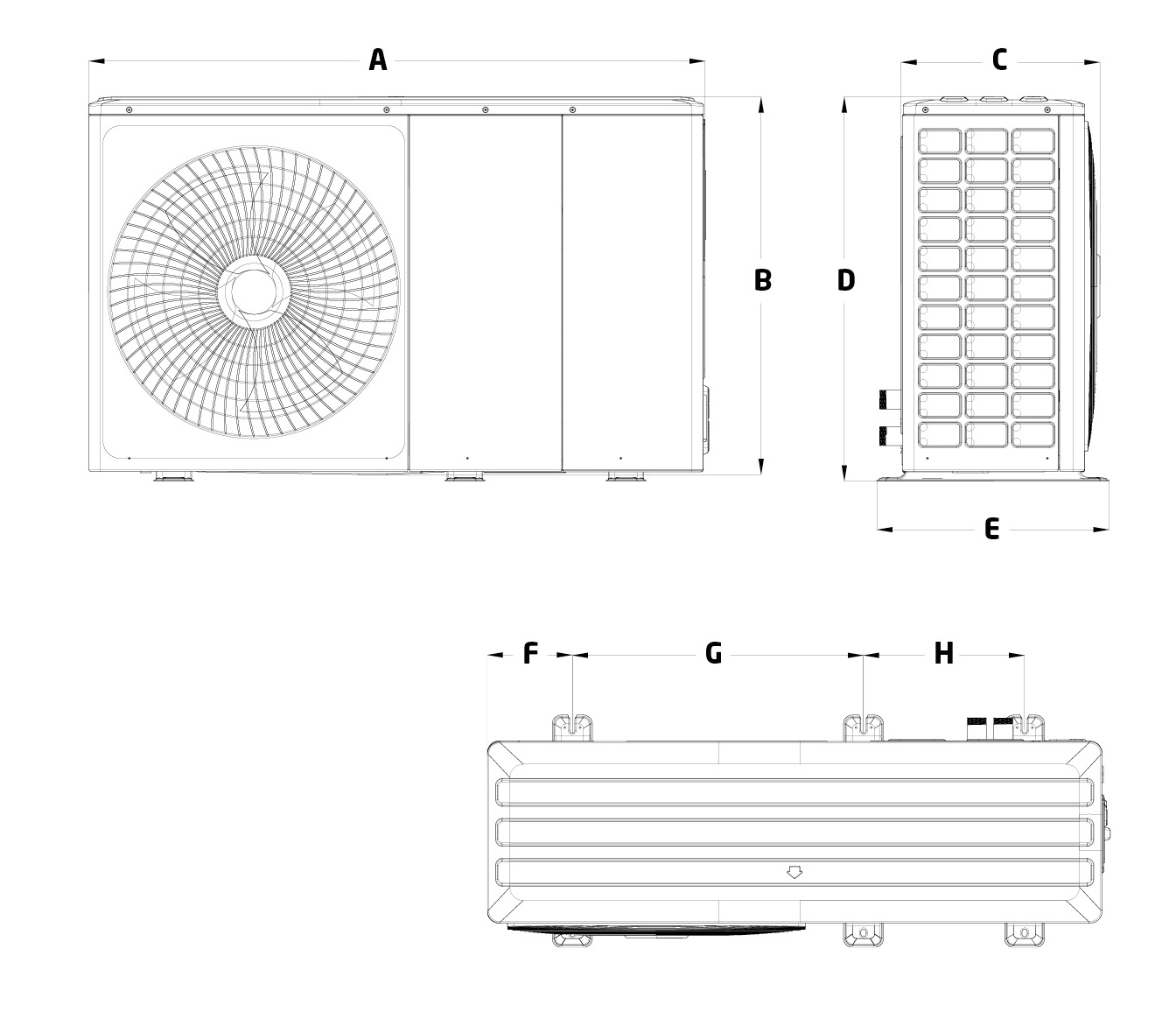

              Baxi HP40 Monobloc Air Source Heat Pump - 7-13kW models - Dimensions

              Dimensions

              7-13kW models

              A: Heat Pump Width = 1388mm

              B: Heat Pump Height = 850mm

              C: Heat Pump Depth = 448mm

              D: Heat Pump Height (total) = 864mm

              E: Heat Pump Depth (total) = 523mm

              F: 191mm

              G: 656mm

              H: 363mm

              Related FAQs

              Do I need to change my radiators for a new air source heat pump?

              As air source heat pumps work at lower temperatures than traditional boilers, there may be a need for your radiators to be upgraded.

              Read more

              Are air source heat pumps safe?

              Air source heat pumps that are installed correctly and in accordance with key guidelines are designed to be safe and efficient, with numerous safety features required as part of the installation.

              Read more

              Are there grants available for air source heat pumps?

              Grants such as the Boiler Upgrade Scheme are available to help eligible households with the cost of having an air source pump installed at the property.

              Read more

              Is an air source heat pump noisy?

              Read our ASHP FAQ for an understanding of noise levels, guidelines/regulations, and strategies for minimising air source heat pump noise.

              Read more

              Do you need planning permission for an air source heat pump?

              In most cases, you don't need planning permission for an air source heat pump (ASHP). But there are certain rules & regulations to be followed. Read more..

              Read more

              Find an Installer

              Simply enter your postcode and find a local, trained, Gas Safe registered (where applicable) engineer to give you a no-obligation quote on a new boiler, cylinder or air source heat pump installation.

              Grants for Heat Pumps

              Different areas may offer different grants to help you with the cost of installing an air source heat pump. We provide a brief overview and links to some of the main organisations that you can contact for further information on grants and loans.

              Book a Service

              We are here to provide peace of mind for all your servicing needs.

              Rest assured your service will be carried out by a qualified Gas Safe engineer, providing you with the best ongoing appliance care for your home heating system.

              We offer servicing for boilers, filters, cylinders, air source heat pumps and more.
