Potterton Titanium Heat

The Potterton Titanium heat boiler has a 7-year parts and labour warranty* and can be installed with a hot water cylinder, such as the Baxi cylinder or Megaflo Eco.

It is the perfect solution for homes that need lots of hot water or have more than one bathroom.

Find an installer

*Terms and conditions apply

Potterton Heat
This is a test image from placehold.it

Features and benefits   |   Dimensions   |   Product literature   |   Technical specifications   |   Related products   |   FAQs

Features and benefits

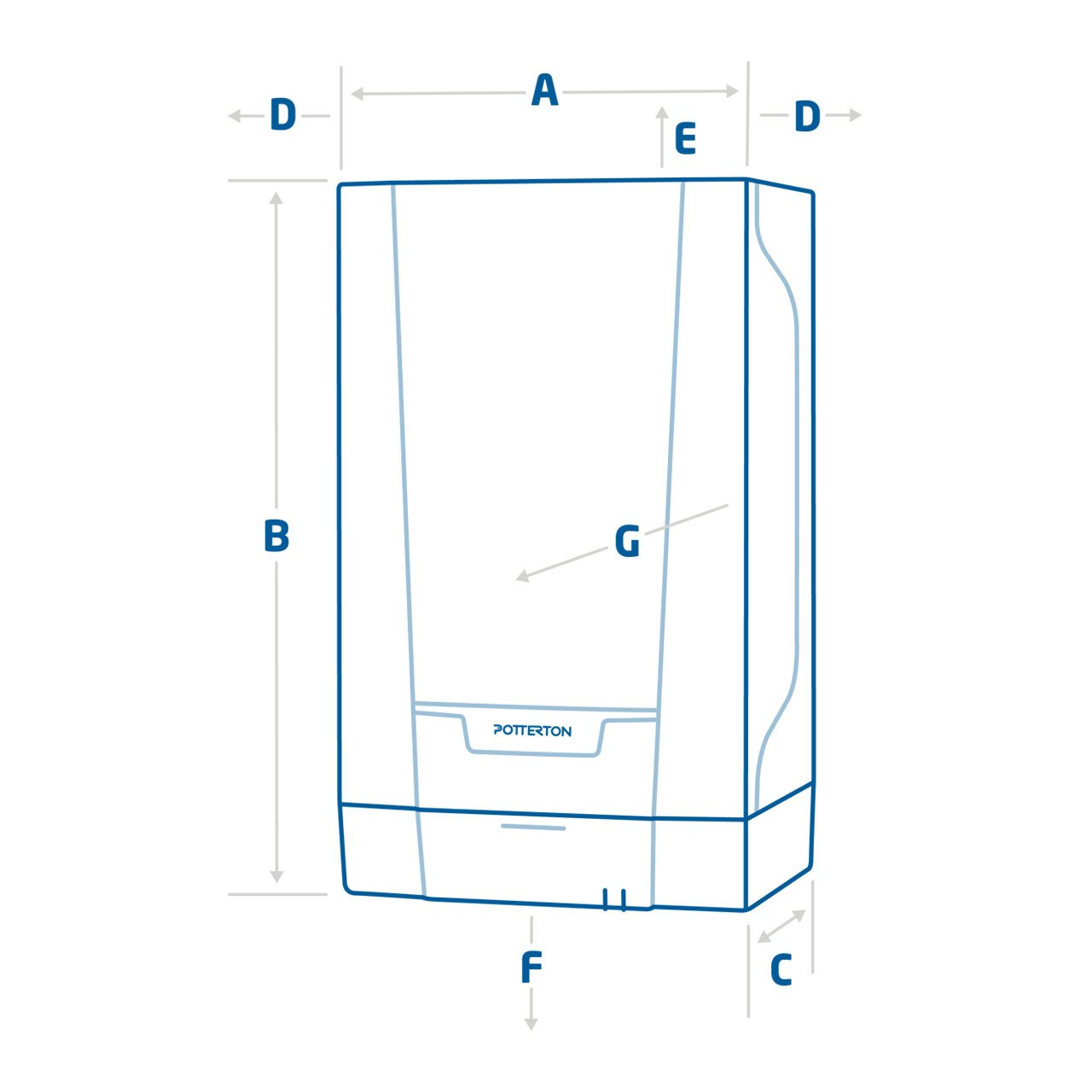

  • A: Boiler Width = 370mm
  • B: Boiler Height = 625mm
  • C: Boiler Depth = 270mm
  • D: Side Clearance = 5mm
  • E: Upper Clearance = 190mm
  • F: Lower Clearance = 120mm
  • G: Front Clearance= 5mm in operation (450mm for servicing)
Potterton Titanium Line Diagram_RGB_DIGI
This is a test image from placehold.it

Product literature

Technical specifications

  • Outputs 15kW, 18kW, 24kW and 30kW
  • Compact cupboard fit
  • No pump overrun or permanent live required
  • Very quiet in operation
  • Top central or optional in-case rear flue
  • Compatible with Megaflo & Baxi cylinders
  • Vertical Sleeve Packaging
  • Front and side access to components
  • Exclusively available from APP Plumbing & Heating

  • View full specification
Technical Table     Potterton Titanium 15 Heat  Potterton Titanium 18 Heat  Potterton Titanium 24 Heat  Potterton Titanium 30 Heat
Sales Code     7668922  7668923  7668924  7668925
Natural gas or LPG     Natural Gas  Natural Gas  Natural Gas  Natural Gas
Inlet supply pressure (natural gas)  mbar (nominal)  20  20  20  20
Maximum Gas Rate (G20) Qmax  m³ / hr  1.75  2.07  2.73  3.27
Heat Input CH  kW (max) Gross (QnHs)  18.32  21.75  28.62  34.35
kW (min) Gross (QnHs)  8.59  8.59  8.59  8.59
Heat Output CH (non-condensing)  kW (Max) (Pn)  16  19  25  30
kW (Min) (Pn)  7.5  7.5  7.5  7.5
Heat Output CH (condensing)  kW (Max) (Pnc)  15  18  24  30
kW (Min) (Pnc)  tbc  tbc  tbc  tbc
Heat Input domestic hot water (DHW)  kW max gross (QnwHs)  N/A  N/A  N/A  N/A
Heat output domestic hot water (DHW)  kW max  N/A  N/A  N/A  N/A
Water heating efficiency class  N/A  N/A  N/A  N/A
Permanent live required     No  No  No  No
External fuse rating (on connection board)  Amps
Pump overrun     No  No  No  No
Integral 'boiler only' frost thermostat     No  No  No  Yes
Maximum DHW flow rate (Delta T @ 35'C rise)  l/min  N/A  N/A  N/A  N/A
Minimum DHW flow rate required  l/min  N/A  N/A  N/A  N/A
Minimum operating DHW pressure required  bar  N/A  N/A  N/A  N/A
Integral expansion vessel  Size (litres)  N/A  N/A  N/A  N/A
Maximum capacity of the CH system  Litres  N/A  N/A  N/A  N/A
Integral automatic bypass     No  No  No  No
Installer Lift Weight  (kg)  17.4  17.4  17.4  19.5
