Baxi Megaflo Compact System

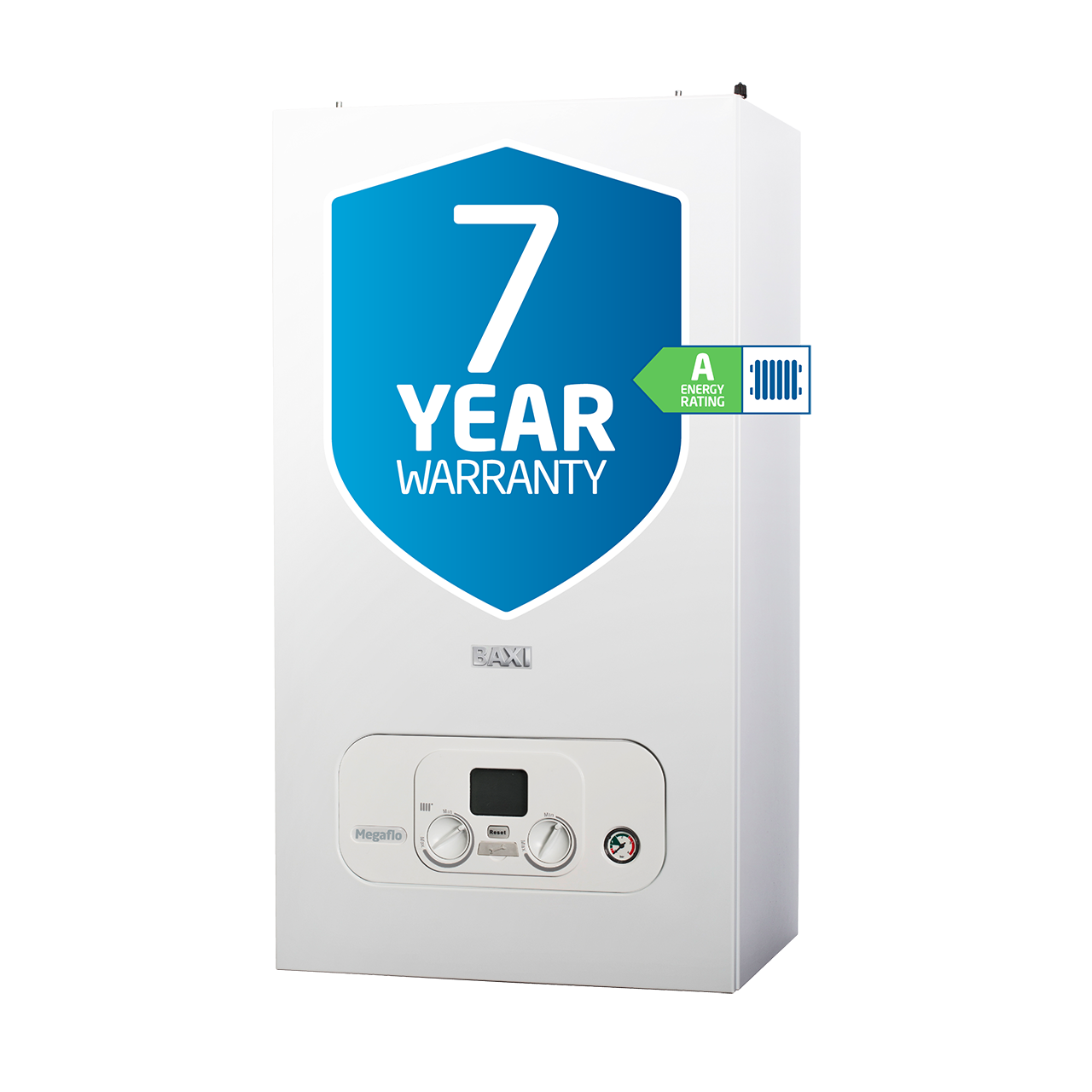

Baxi Megaflo Compact System Boiler Dimensions

System Boilers

Baxi Megaflo Compact System

The Baxi Megaflo Compact System has a 7-year parts and labour warranty† and can be installed with a hot water cylinder, such as the Baxi cylinder or Megaflo Eco.


It is the perfect solution for homes that require large amounts of hot water or have more than one bathroom.

Features and Benefits

Warranty

7-year parts and labour warranty† for peace of mind

    Compact size

    Lightweight and compact cupboard fit

      Compatible

      Compatible with market-leading Megaflo Eco cylinders

        High quality

        Stainless steel heat exchanger and brass hydraulics
          Show More
          Show Less

          Product Literature

          User Guides

          User Guides

          Product Documentation

          No documentation available.

          Installation & Service Manuals

          Installation & Service Manuals

          Product Documentation

          No documentation available.

          Energy Labels

          Energy Labels

          Product Documentation

          No documentation available.

          Baxi Combi Boiler Dimensions

          Dimensions

          A: Boiler Width = 395mm

          B: Boiler Height = 700mm

          C: Boiler Depth = 285mm

          D: Side Clearance = 2.5mm

          E: Upper Clearance = 178mm

          F: Lower Clearance = 200mm

          G: Front Clearance = 5mm in operation (450mm for servicing)

          Related FAQs

          What should my boiler pressure be set at?

          A safe level for your boiler pressure should be between 1.0 and 2.0 bar. Watch this video to learn how.

          Should I turn off my boiler in the summer?

          In Summer, you might be tempted to switch off your boiler to save money. However, this can be inefficient and expensive. Instead, you should consider setting your boiler to only heat your water.

          What is the Boiler Upgrade Scheme?

          The Boiler Upgrade Scheme is a Government grant of £7,500 to support with the upfront costs of installing low carbon heating systems, such as an air source heat pump, subject to eligibility. A temporary uplift of £1,500 was also introduced in July 2026 to provide additional support for off-grid property owners.

          Does my boiler filter need cleaning?

          Your filter should be cleaned during your boiler’s annual service. This will prevent sludge building up in your system. Some filters come with an app that can warn you when they filter needs to be cleaned, so that you can arrange for your installer to visit before it gets too full.
