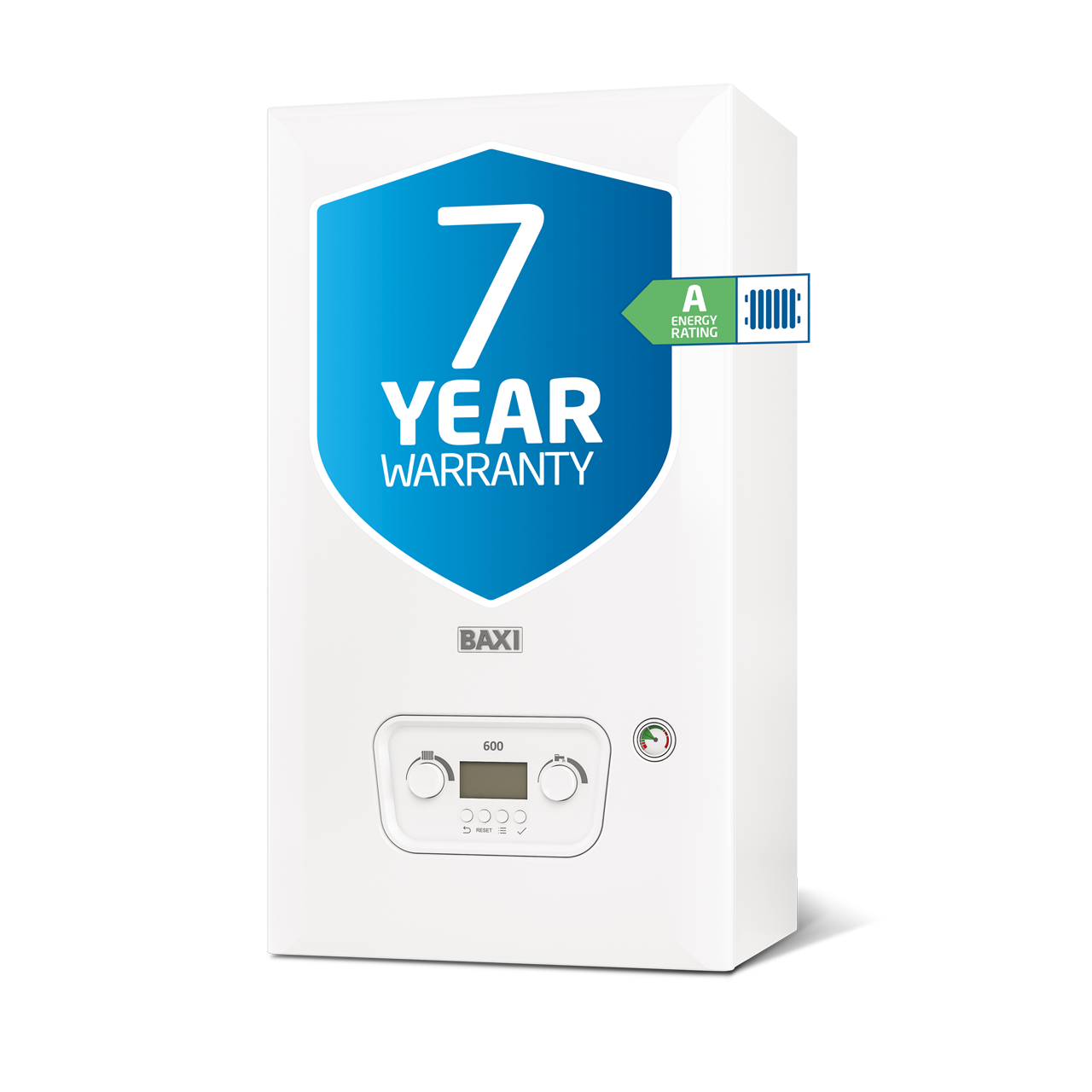

Baxi 600 System 2

The Baxi 600 System 2 boiler is the perfect option when you need lots of hot water or have more than one bathroom.

It is compatible with Baxi cylinders and the Megaflo Eco range and comes with a seven-year parts and labour warranty*.

Find an installer

*Terms and conditions apply

Baxi 600 System 2
This is a test image from

Features and benefits   |   Dimensions   |   Product literature   |   Technical specifications   |   Related products   |   FAQs

Features and benefits


  • A: Boiler Width = 395mm
  • B: Boiler Height = 700mm
  • C: Boiler Depth = 285mm
  • D: Side Clearance = 2.5mm
  • E: Upper Clearance = 178mm
  • F: Lower Clearance = 150mm
  • G: Front Clearance= 5mm in operation (450mm for servicing)
Baxi 600 System 2 Line Diagram_ALT
This is a test image from

Product literature

Technical specifications

  • 15, 18 & 24kW System (Natural Gas or LPG)
  • Compact cupboard fit
  • Brass hydraulics block
  • Built-in stand-off frame
  • Certified OpenTherm
  • Simple hanging bracket
  • Vertical sleeve recyclable packaging
  • Combined PrV with seperate drain
  • Colour-coded and removable wiring blocks
  • Pre-heated siphonic condensate trap
  • Easy-fill 2 permanent filling link


  • View full specification
Technical Table   Baxi 615 System 2 Baxi 618 System 2 Baxi 624 System 2
Sales Code   7798687 7802020 7802241
Natural gas or LPG   Yes Yes Yes
Inlet supply pressure (natural gas) mbar (nominal) 20 20 20
Maximum Gas Rate (G20) Qmax m³ / hr 1.64 1.97 2.61
Heat Input CH kW (max) Gross (QnHs)  15.5 18.6 24.7
  kW (min) Gross (QnHs) 4.9 4.9 4.9
Heat Output CH (non-condensing) kW (Max) (Pn) 15 18 24
  kW (Min) (Pn) 4.8 4.8 4.8
Heat Output CH (condensing) kW (Max) (Pnc) 16.3 19.9 26.3
  kW (Min) (Pnc) 5.2 5.2 5.2
Heat Input domestic hot water (DHW) kW max gross (OnwHs)  N/A N/A N/A
Heat Output domestic hot water (DHW) kW max  N/A N/A N/A
Water heating efficiency class   A A
Permanent live required   Yes  Yes  Yes
External fuse rating (on connection board) Amps F0.5A L250VP F0.5A L250VP F0.5A L250VP
Pump overrun   Yes Yes Yes
Integral 'boiler only' frost thermostat   Yes Yes Yes
Maximum DHW flow rate (Delta T @35'C rise)  l/min N/A N/A N/A
Minimum DHW flow rate required   l/min
Minimum operating DHW pressure required bar 0.5  0.5  0.5
Integral expansion vessel Size (litres)
Maximum capacity of the CH system Litres  100  100  100
Integral automatic bypass   Yes  Yes  Yes
Installer Lift Weight (kg) 28  29  30
