  2. Main Eco Compact Heat

Heat Only Boilers

Main Eco Compact Heat

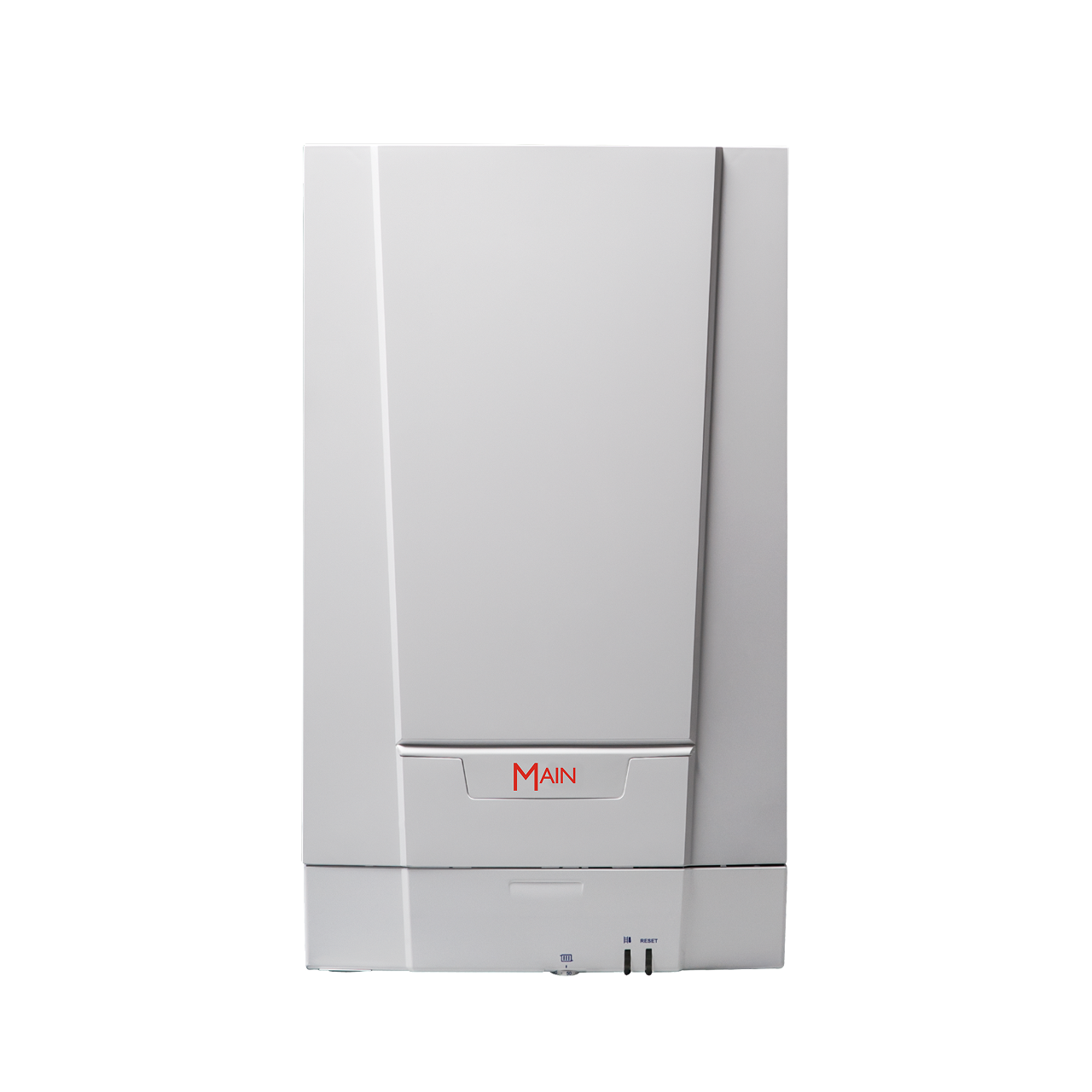

The lightweight Main Eco Compact Heat is small enough to fit into a cupboard and is perfect for replacing old, standard efficiency boilers.

Features and Benefits

Warranty

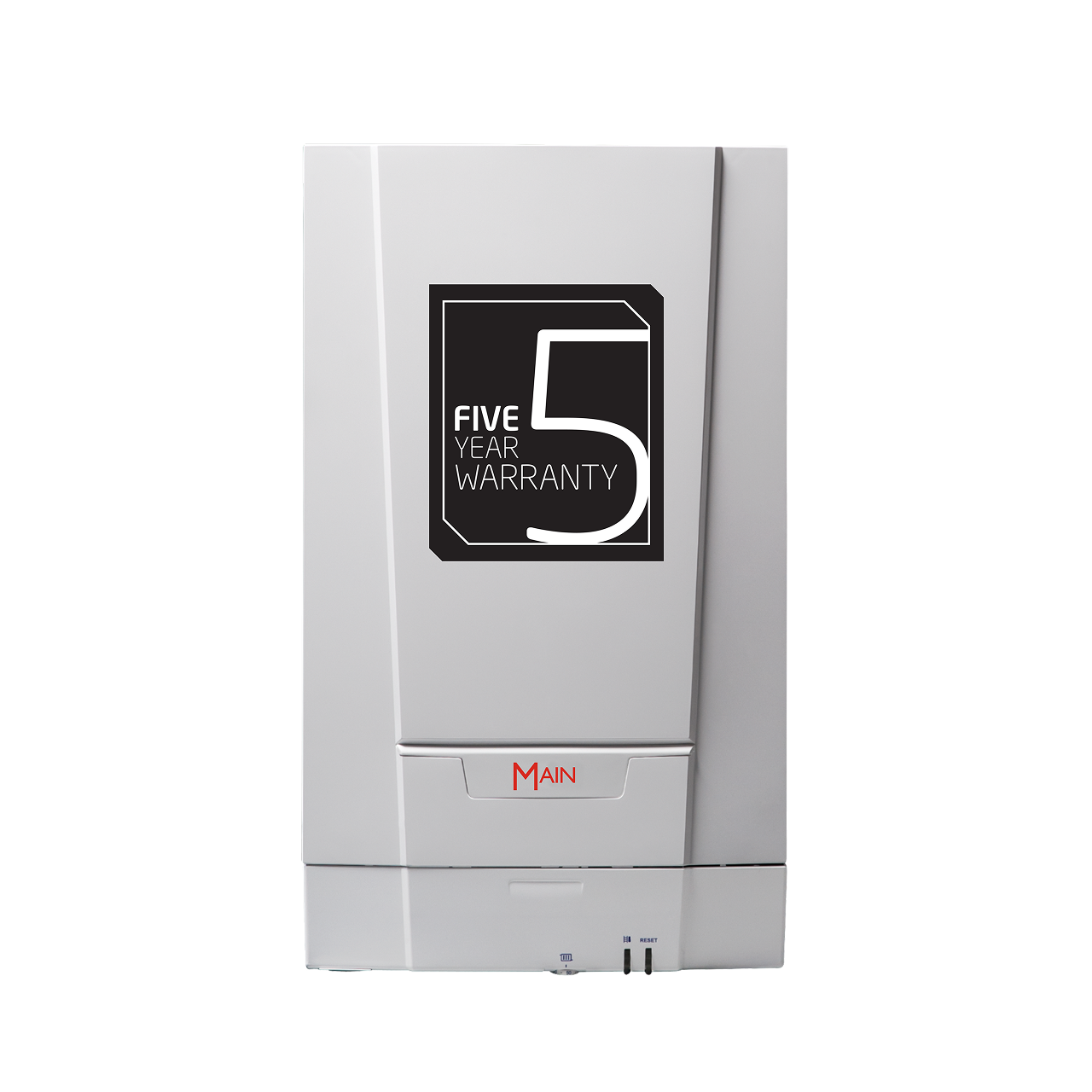

5 year warranty*

Outputs 15kW, 18kW, 24kW and 30kW

Only 17.4kg installer lift weight

Compact cupboard fit

Easy fit wall mounted bracket

A durable and simple-to-install bracket designed for secure wall mounting with minimal effort.

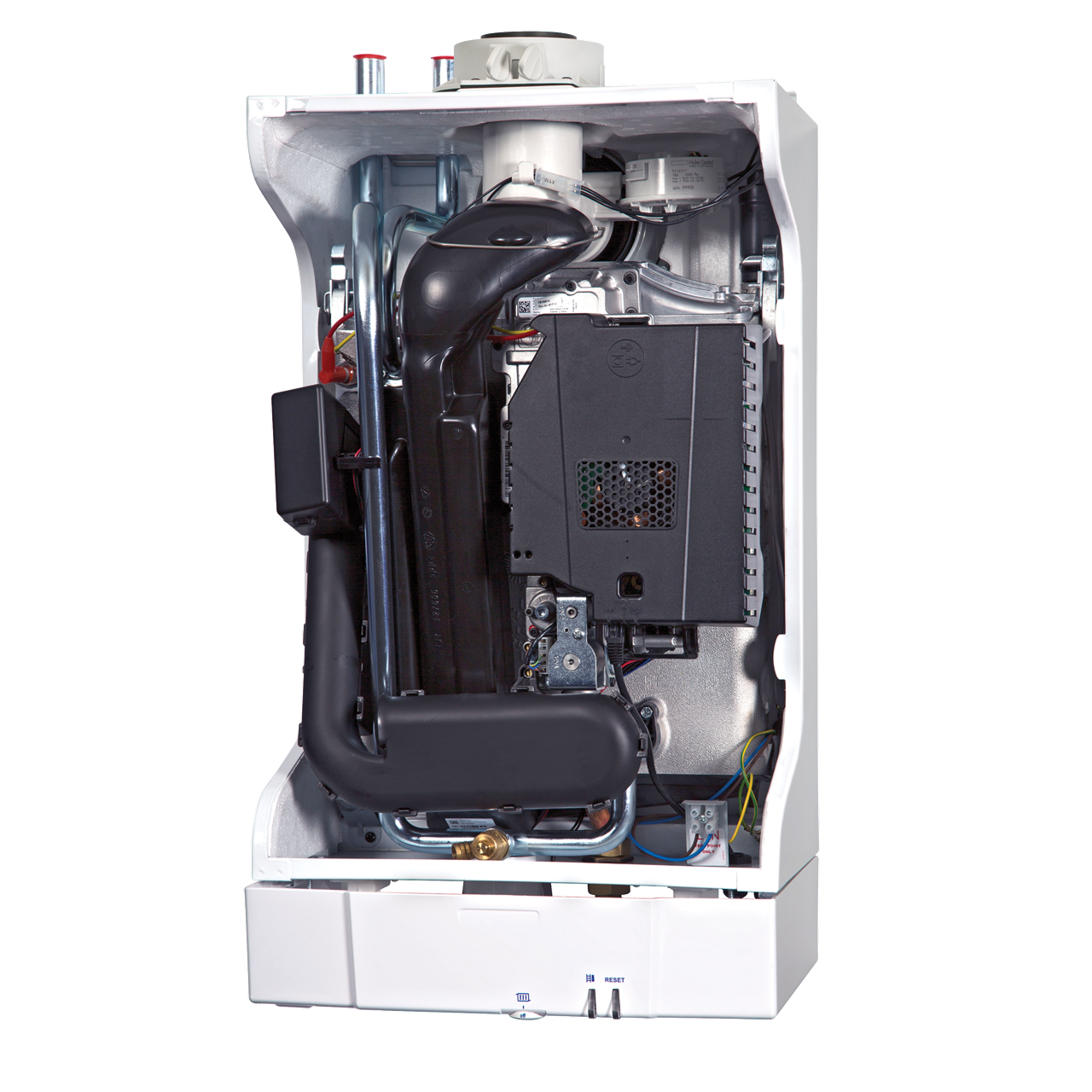

Front and side access

Show More
Show Less

*Subject to registration on warranty.baxi.co.uk or Baxi Works. Terms and conditions apply

Product Literature

Installation and Service Manuals

Installation and Service Manuals

Product Documentation

No documentation available.

User Guides

User Guides

Product Documentation

No documentation available.

Energy Labels

Energy Labels

Product Documentation

No documentation available.

Solutions Brochure

Main Eco Compact Heat

Product Documentation

No documentation available.

Main Eco Compact Heat only Boiler Dimensions - Baxi Professional for Installers

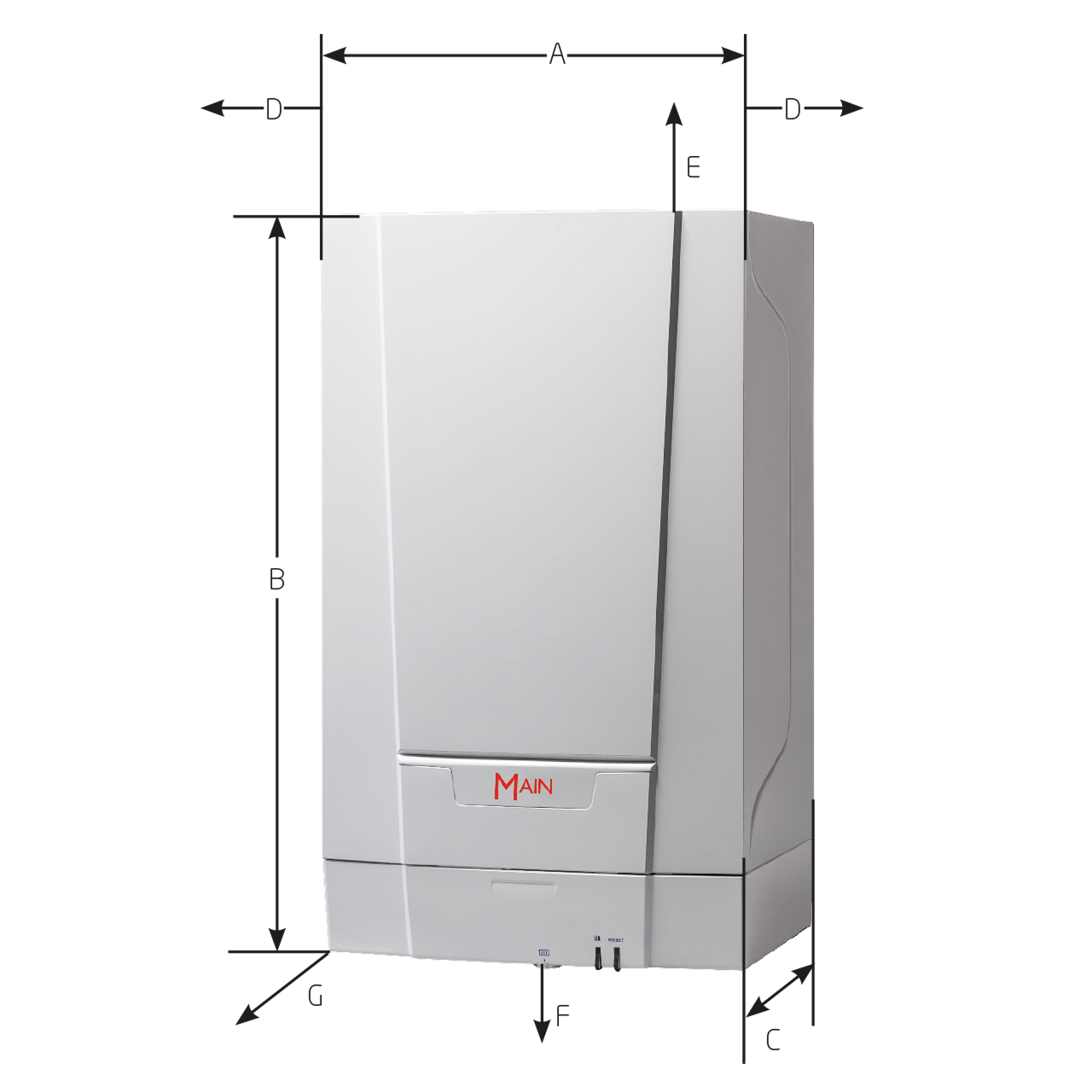

Dimensions

A: Width 370mm

B: Height 625mm

C: Depth 270mm



Service Clearance

D: Side 5mm*

E: Upper 190mm*

F: 120mm*

G: 5mm*



*500mm for servicing

Technical Specification

Main Eco Compact HeatUnitsMain Eco CompactHeat 15kWMain Eco CompactHeat 18kWMain Eco CompactHeat 24kWMain Eco CompactHeat 30kW
Sales code (boiler only)Controls and accessories7712025771202677120287712029
Operating mode selector switch with resetYesYesYesYes
User adjustable CH temperatureRange 30°C to 80°CYesYesYesYes
LED temp/status/ fault diagnosis displayYesYesYesYes
Gas
NOx class6666
ErP product information
NOxmg/kWh20212424
Sound power level, indoorsLWA dB33343737

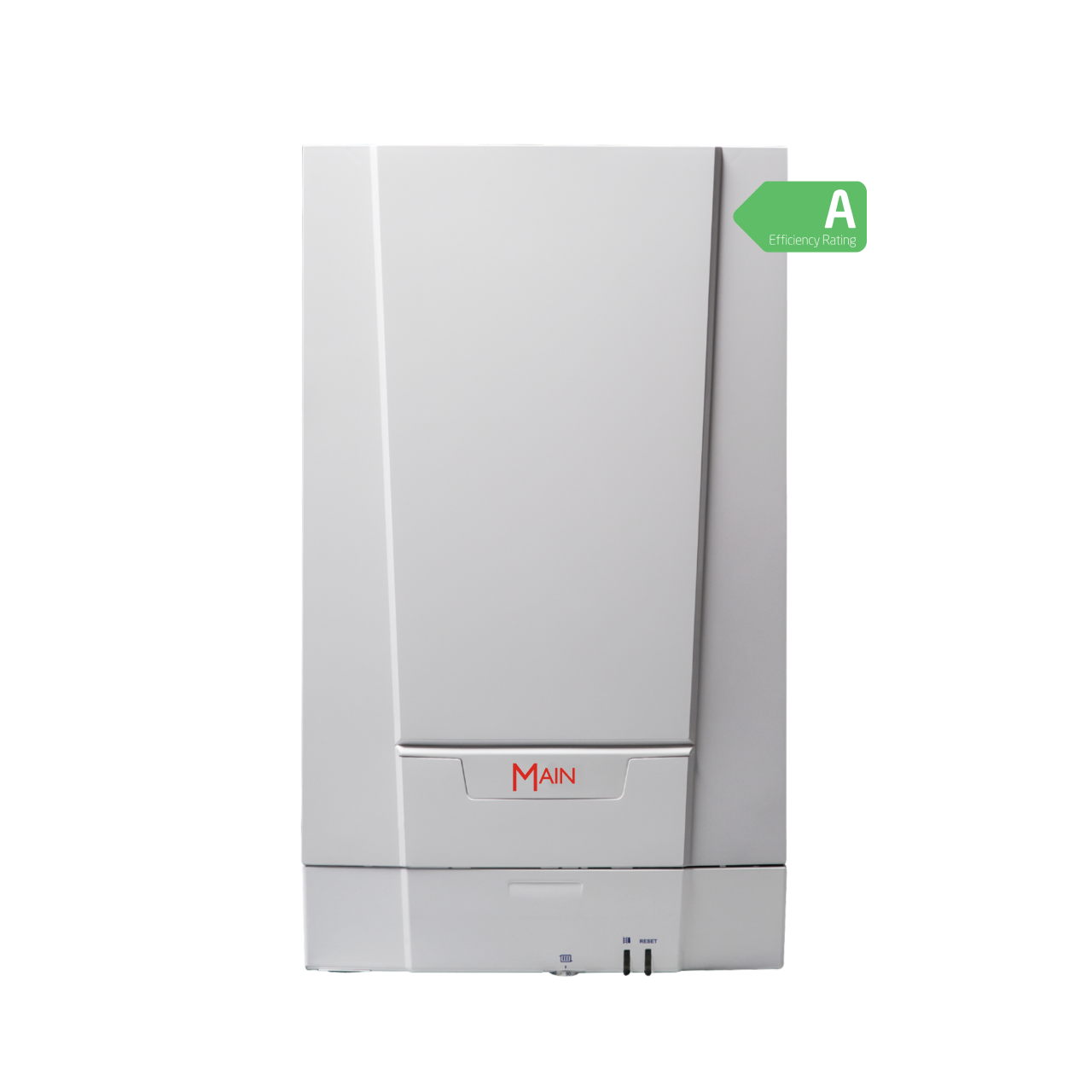

Space heating efficiency classAAAA
Heat input central heating (CH)kW max gross (QnHs) – kW min gross (QnHs)18.32 – 8.5921.75 – 8.5928.62 – 8.5934.35 – 8.59
Heat output CH (non-condensing)kW max (Pn) – kW min (Pn)16 – 7.519 – 7.525 – 7.530 – 7.5
Gas supply pipe sizemm22222222
Inlet supply pressure (natural gas)mbar20202020
Maximum gas ratem3/hr1.752.072.733.27
Mechanical and hydraulic
Compartment ventilation requiredNoNoNoNo
Flow/return pipemm22222222
Condensate discharge pipe connectionmm21.521.521.521.5
Electrical
Electrical supplyVolts / Hz230V / 50Hz230V / 50Hz230V / 50Hz230V / 50Hz
Permanent live requiredNoNoNoNo
Power consumptionWatts20233344
External fuse ratingAmps3333
Internal fuse rating1.6T1.6T1.6T1.6T
Boiler IP rating (electrical protection)Approval CategoryIPX4DIPX4DIPX4DIPX4D
Pump overrunNoNoNoNo
Concentric flue systems
Standard telescopic concentric fluemm315-500315-500315-500315-500
Horizontal concentric (60/100mm)
Max equivalent length (m)6666
Reduction Per 135º bend (m)0.50.50.50.5
Reduction Per 93º bend (m)1111
Weights
Gross packaged boiler weight(Max)kg19.519.519.521.5
Maximum installation lift weightkg17.417.417.419.5
