Features
Feature Item 1
Capacities from 750L – 5000L
Feature Item 2
Removable Insulation jackets provided
Feature Item 3
Up to 4’’ connections to manage high system flow rates
Feature Item 4
8 flow and return connections for use with hybrid systems
Feature Item 5
High performance insulation to minimise heat loss
Feature Item 6
Optional 10kW heating element
Show More
Show Less
Product Documents
Specification sheet
Specification sheet

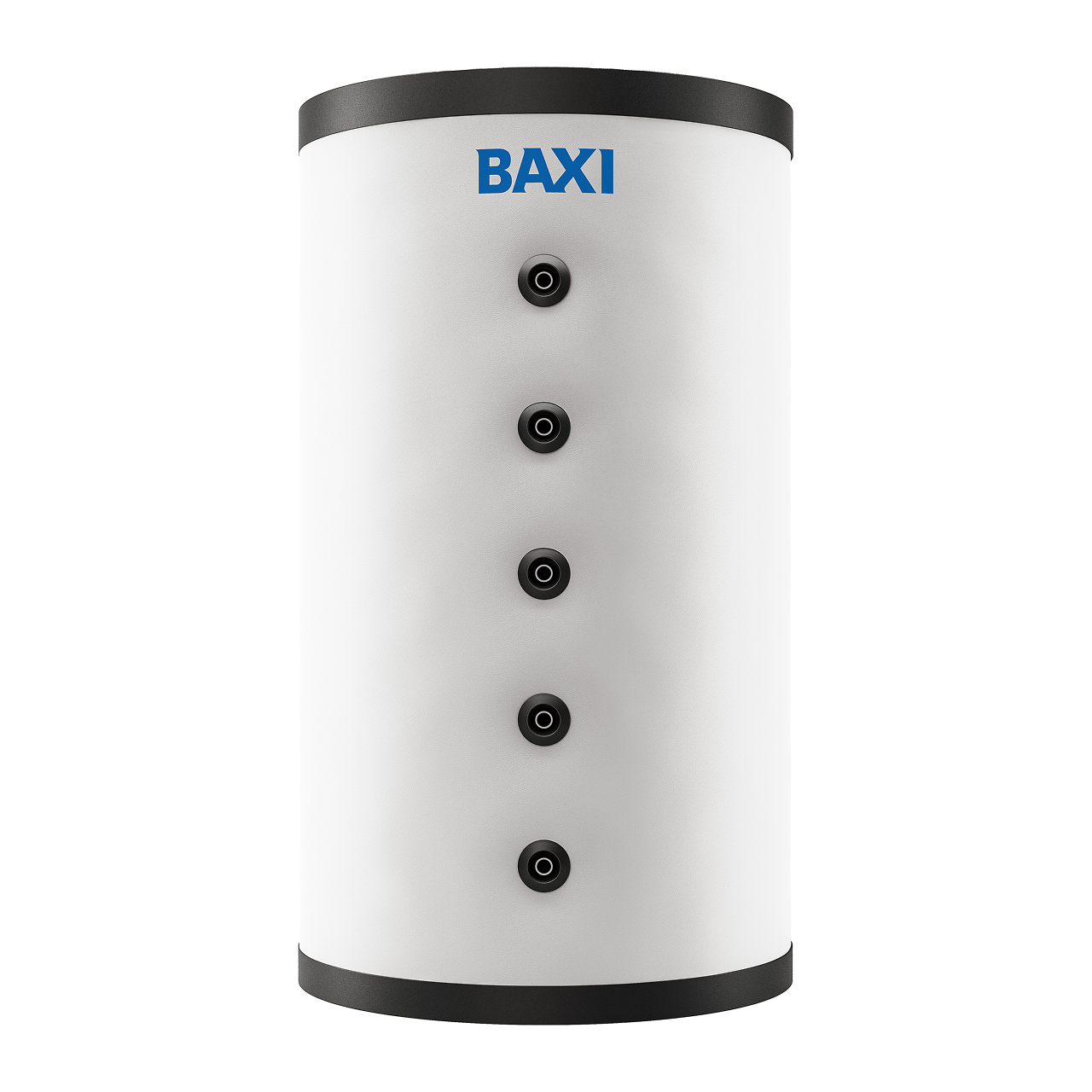

Commercial Thermal Stores
Dimensions -> TODO
Technical Specification
| 750L | 1000L | 1500L | 2000L | 2500L | 3000L | 5000L | |
|---|---|---|---|---|---|---|---|
| Product code | 7863754 | 7863755 | 7863756 | 7863757 | 7863758 | 7863759 | 7863762 |
| Storage Capacity (L) | 726 | 1000 | 1438 | 2041 | 2500 | 3000 | 5000 |
| Weight empty (kg) | 95 | 115 | 180 | 240 | 250 | 300 | 525 |
| Weight full (kg) | 821 | 1115 | 1618 | 2281 | 2750 | 3300 | 5525 |
| Height (mm) | 1765 | 2140 | 2275 | 2565 | 2360 | 2860 | 2970 |
| Insulated diameter (mm | 1010 | 1130 | 1280 | 1320 | 1470 | 1470 | 1820 |
| Clearances | |||||||
| Front (mm) see Fig.2 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Back (mm) see Fig.2 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Sides (mm) see Fig.2 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| H Min (mm) see Fig. 2 | 1986 | 2308 | 2555 | 2885 | 2780 | 3216 | 3483 |
| Shipping | |||||||
| Height (mm) | 1950 | 2300 | 2400 | 2600 | 2400 | 3000 | 3000 |
| Depth (mm) | 950 | 1050 | 1300 | 1400 | 1500 | 1500 | 1850 |
| Width (mm) | 950 | 1050 | 1300 | 1400 | 1500 | 1500 | 1850 |
| Gross Weight (kg) | 125 | 150 | 225 | 325 | 340 | 395 | 650 |
| ERP class | C | C | C | C | N/A | N/A | N/A |
Connection type | |||||||
| D - Drain | 1.5" | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| E1 - E5 - sensor pocket | 0.5" | 0.5" | 0.5" | 0.5" | 0.5" | 0.5" | 0.5" |
| G1 - heat generator flow | 3" | 3" | 4" | 4" | 4" | 4" | 4" |
G2 - heat generator return | 3" | ||||||
| I - electric back-up | 2" | ||||||
K1 - 4 - Auxillary flow/returns | 3" | 3" | 3" | 3" | 3" | 3" | 3" |
K5 - 6 - Auxillary flow/returns | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" |
| P1 - heating flow | 3" | 3" | 4" | 4" | 4" | 4" | 4" |
| P2 - heating return | 3" | 3" | 4" | 4" | 4" | 4" | 4" |
| T - air vent | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" |
| Connection locations - height from base (mm) | |||||||
| D - Drain | 125 | 120 | 165 | 155 | 180 | 180 | 140 |
| E1 - sensor pocket | 395 | 415 | 500 | 505 | 565 | 565 | 600 |
| E2 - sensor pocket | 572 | 632 | 717 | 772 | 782 | 865 | 900 |
| E3 - sensor pocket | 748 | 848 | 933 | 1038 | 998 | 1165 | 1200 |
| E4 - sensor pocket | 1055 | 1228 | 1313 | 1505 | 1378 | 1690 | 1725 |
| E5 - sensor pocket | 1315 | 1553 | 1638 | 1905 | 1703 | 2140 | 2175 |
| G1 - heat generator flow | 395 | 415 | 500 | 505 | 565 | 565 | 600 |
G2 - heat generator return | 1445 | 1715 | 1800 | 2105 | 1865 | 2365 | 2400 |
| I - electric back-up | 1285 | 1555 | 1615 | 1920 | 1680 | 2180 | 2215 |
| K1 - auxlillary | 925 | 1065 | 1150 | 1305 | 1215 | 1465 | 1500 |
| K2 - auxillary | 1185 | 1390 | 1475 | 1705 | 1540 | 1915 | 1950 |
| K3 - auxlliary | 925 | 1065 | 1150 | 1305 | 1215 | 1465 | 1500 |
| K4 - auxillary | 1185 | 1390 | 1475 | 1705 | 1540 | 1915 | 1950 |
| K5 - auxillary | 365 | 385 | 470 | 475 | 535 | 535 | 570 |
| K6 - auxillary | 1475 | 1745 | 1830 | 2135 | 1895 | 2395 | 2430 |
| P1 - heating flow | 395 | 415 | 500 | 505 | 565 | 565 | 600 |
P2 - heating return | 1445 | 1715 | 1800 | 2105 | 1865 | 2365 | 2400 |
*tested in accordance with BSEN12897
