Hybrid System Controller

hybrid-systems-control-product-image

Heating control

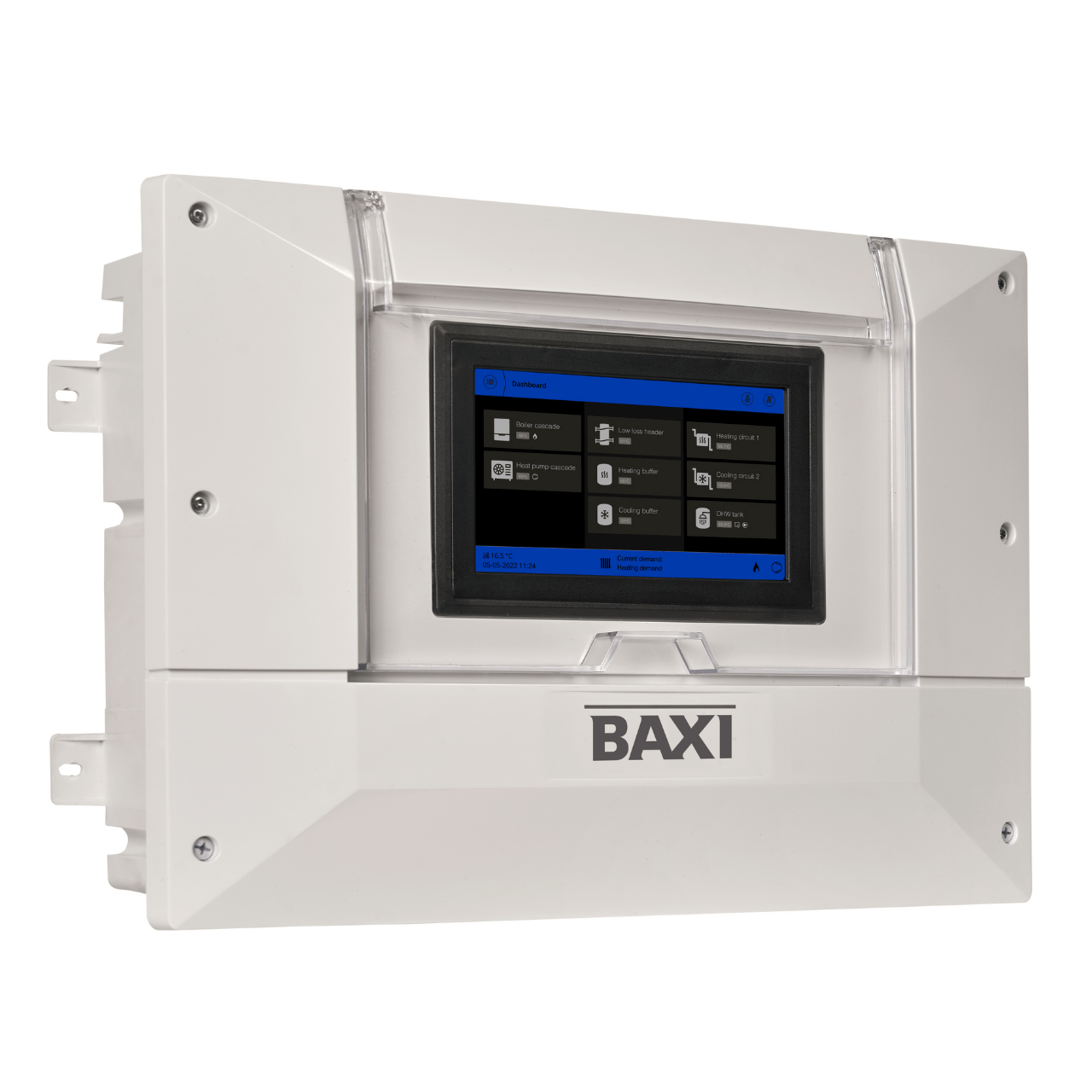

Baxi Hybrid System Controller

Heating and cooling installations in commercial buildings are becoming more complex than ever. This system combine heating, cooling, domestic hot water, and increasingly renewable energy sources, while building owners continue to expect maximum comfort, high energy efficiency, and reliable, uninterrupted operation.



While traditional systems use one controller per generator, our Hybrid System Controller goes further by controlling the entire HVAC installation from a single central platform. It coordinates all generators — including boilers and heat pumps — as well as buffer tanks and domestic hot water tanks, ensuring that all components work together efficiently and reliably.



Our Hybrid System Controller is designed with your needs in mind. It provides a single point of control for the entire system — whether for heating or cooling — making system management easier, more efficient, and more reliable.

Features and Benefits

Remote or on-site management

via ethernet connection and a 7'' touchscreen controller

    Energy consumption optimised

    through intelligent, real-time demand management

      Extensive compatibility

      across heating systems - with a new or old Baxi or Remeha boiler, including third-party* and existing Baxi Air Source Heat Pumps.

        A single control point

        for all heating and cooling, simplifying management and boosting efficiency

          Integration with building management systems

          for centralised building control
            Show More
            Show Less

             *For full compatibility details please contact your local technical sales manager

            Product Literature

            Manuals

            Installation & Service Manuals

            Product Documentation

            No documentation available.

            dimensions-chvac-manager

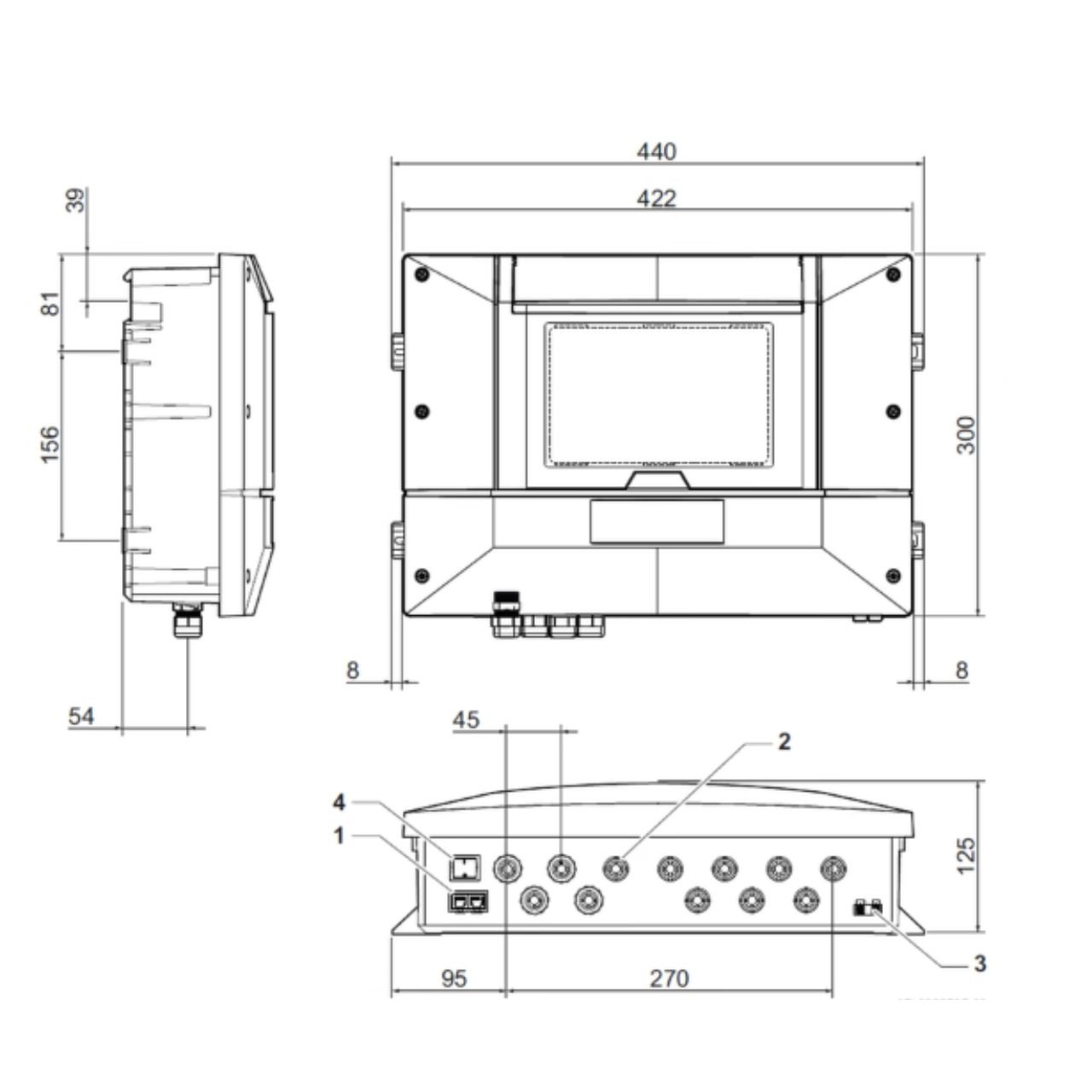

            Dimensions

            Width: 440mm

            Height: 300mm

            Depth: 125 mm

            Technical Specification

            SpecificationValue
            Maximum appliances8 boilers or heat pumps
            Dimensions (W × H × D)440 × 300 × 125 mm
            Operating temperature0°C - 60°C
            Storage temperature-25°C - 60°C
            Relative humidity0 - 95 %
            Supply voltage230 VAC
            Maximum power consumption~14 W
            Internal fuse6.3 A
